AWS Bedrock AgentCore: Architecture Patterns for Multi-Agent Systems

A comprehensive catalog of all architectural patterns available for building AWS Bedrock AgentCore multi-agent systems, with detailed benefits, trade-offs, implementation guidance, cost comparisons, and evolution paths.

Executive Summary

This document catalogs all architectural patterns available for building AWS Bedrock AgentCore multi-agent systems, with detailed benefits, trade-offs, and implementation guidance.

Recommended Starting Point: Pattern 1: Platform-as-a-Service (Shared Infrastructure + Independent Agents), which provides the optimal balance of flexibility, cost-efficiency, and context sharing for same-domain agents.

---

Table of Contents

1. Pattern Overview
2. Pattern 1: Platform-as-a-Service (Recommended Starting Point)
3. Pattern 2: Monolithic Single-Agent
4. Pattern 3: Independent Multi-Agent (A2A)
5. Pattern 4: AgentCore Supervisor (Gateway/MCP)
6. Pattern 5: Bedrock Agent Supervisor
7. Pattern 6: Hybrid (Platform + Supervisor)
8. Comparison Matrix
9. Evolution Paths
10. Decision Framework

---

Pattern Overview

Pattern	Memory	Coordination	Deployment	Best For
1. Platform-as-a-Service	Shared	None (peer agents)	Platform + agents	Same-domain agents
2. Monolithic	Integrated	N/A (single agent)	Single stack	Simple single-purpose agents
3. A2A Protocol	Independent	Peer-to-peer	Separate stacks	Cross-domain autonomous agents
4. AgentCore Supervisor	Centralized	Supervisor orchestrates	Single stack	Complex orchestration logic
5. Bedrock Supervisor	Independent	Supervisor routes	Single or multiple	Simple Bedrock-only routing
6. Hybrid	Shared + Centralized	Supervisor + platform	Platform + supervisor + agents	Future: routing layer

---

Pattern 1: Platform-as-a-Service (Shared Infrastructure + Independent Agents)

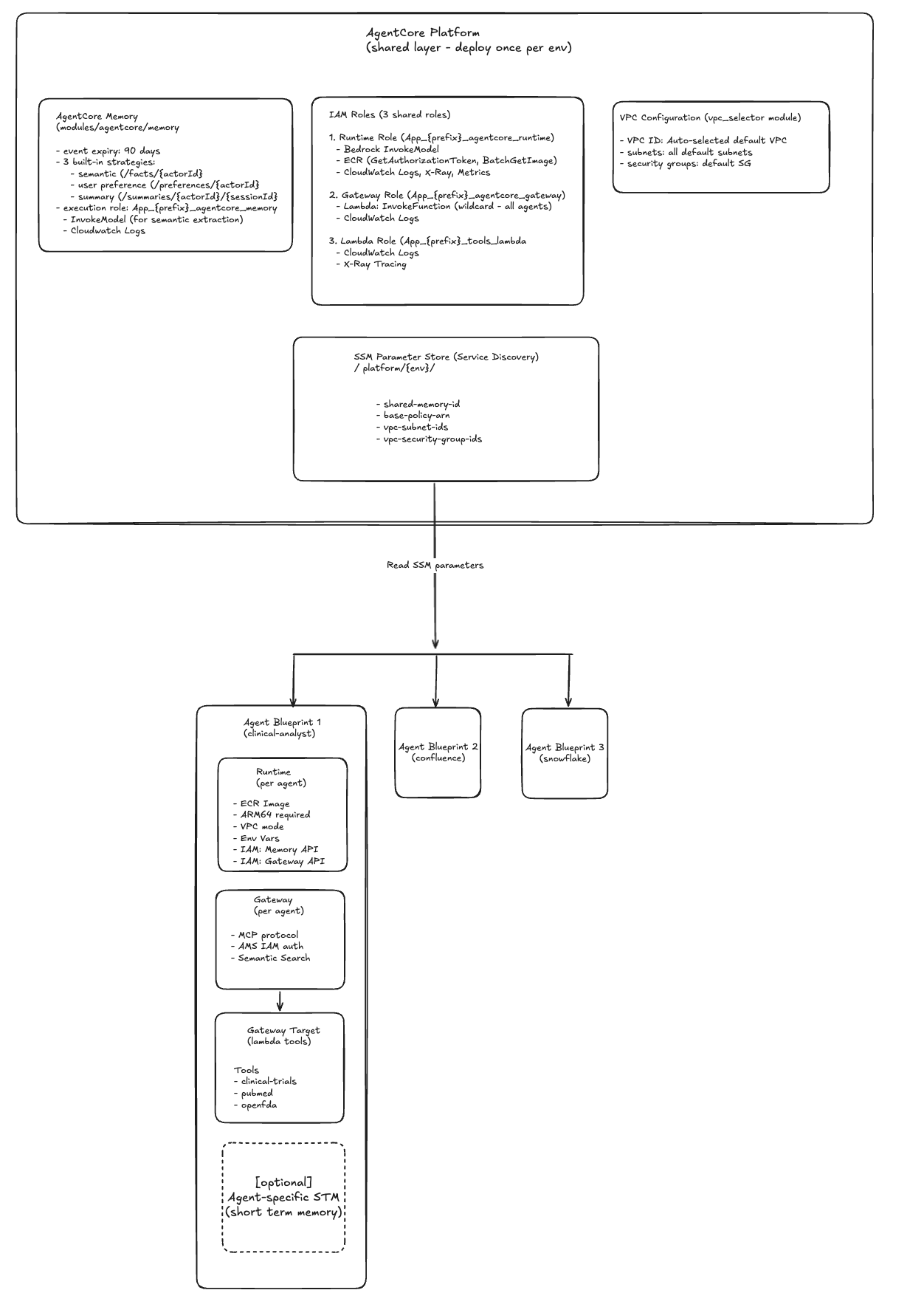

Architecture Diagram

┌──────────────────────────────────────────────────────────┐
│         agentcore-platform (Shared Layer)                │
│  Deploy Once Per Environment                             │
│                                                          │
│  ┌────────────────┐  ┌────────────┐  ┌──────────────┐  │
│  │ AgentCore      │  │ IAM Roles  │  │ VPC Config   │  │
│  │ Memory (1)     │  │ Runtime    │  │              │  │
│  │ - Semantic     │  │ Gateway    │  │ Subnets      │  │
│  │ - Preferences  │  │ Lambda     │  │ Security Gps │  │
│  │ - Summaries    │  │            │  │              │  │
│  └────────┬───────┘  └─────┬──────┘  └──────┬───────┘  │
│           │                │                │           │
│           └────────────────┼────────────────┘           │
│                     ┌──────▼────────┐                   │
│                     │ SSM Parameters│                   │
│                     │ /platform/dev/│                   │
│                     └───────────────┘                   │
└──────────────────────────────────────────────────────────┘
                            │
         ┌──────────────────┼──────────────────┐
         │                  │                  │
    ┌────▼─────────┐   ┌────▼────────┐   ┌────▼─────────┐
    │ data-        │   │ research-   │   │ regulatory-  │
    │ analyst-v2   │   │ agent       │   │ agent        │
    │              │   │             │   │              │
    │ Runtime      │   │ Runtime     │   │ Runtime      │
    │ Gateway      │   │ Gateway     │   │ Gateway      │
    │ Lambda(s)    │   │ Lambda(s)   │   │ Lambda(s)    │
    │              │   │             │   │              │
    │ reads SSM →  │   │ reads SSM → │   │ reads SSM →  │
    └──────────────┘   └─────────────┘   └──────────────┘

Characteristics

Memory Model: Shared memory with {actorId} namespace isolation

Coordination: None - agents are peers with no supervisor

Deployment:

1. Deploy platform once: cd agentcore-platform && make deploy
2. Deploy agents independently: cd agentcore-agent-v2 && make deploy

Resource Sharing:

• ✅ Single AgentCore Memory
• ✅ Shared IAM roles (Runtime, Gateway, Lambda)
• ✅ Shared VPC configuration
• ✅ SSM Parameter Store for discovery

Benefits

✅ Cost-Efficient

• Single memory instance shared across all agents
• Shared IAM roles reduce administrative overhead
• Shared VPC configuration (no duplicate NAT gateways)

✅ Cross-Agent Context

• User preferences learned by Agent A available to Agent B
• Seamless user experience (no context repetition)
• Long-term memory benefits all agents

✅ Independent Deployments

• Deploy/destroy agents independently
• No downtime for other agents
• Different release cadences per agent

✅ Flexible Scaling

• Add new agents without platform changes
• Platform team manages shared infrastructure
• Agent teams focus on agent logic

✅ Simplified Architecture

• No coordination logic needed
• No supervisor to maintain
• Clear separation: platform vs agent concerns

Limitations

⚠️ Same Trust Domain Required

• All agents must be in same security context
• Not suitable for cross-organizational agents

⚠️ No Automatic Routing

• User must know which agent to invoke
• No supervisor to decide which agent to use

⚠️ Namespace Discipline Required

• Agents must follow namespace conventions
• Potential for namespace conflicts

When to Use

• ✅ Multiple agents in same functional domain (e.g., all healthcare/scientific)
• ✅ Agents benefit from shared user context
• ✅ Want independent agent deployments
• ✅ Cost optimization important
• ✅ Platform team can manage shared infrastructure
• ❌ NOT for cross-organizational agents
• ❌ NOT when strong isolation required

Implementation

Terraform structure:

blueprints/
├── agentcore-platform/          # Deploy once
│   └── terraform/
│       └── main.tf              # Creates memory + IAM + VPC + SSM
└── agentcore-agent-v2/          # Deploy per agent
    └── terraform/
        └── main.tf              # Reads SSM, creates Runtime + Gateway

Key code patterns:

# Platform: Create and publish memory
module "memory" {
  source = "../../modules/agentcore/memory"
  memory_strategies = [
    { namespace = "/facts/{actorId}" },
    { namespace = "/preferences/{actorId}" }
  ]
}

resource "aws_ssm_parameter" "memory_id" {
  name  = "/platform/dev/memory-id"
  value = module.memory.memory_id
}

# Agent: Read and use
data "aws_ssm_parameter" "memory_id" {
  name = "/platform/dev/memory-id"
}

module "runtime" {
  memory_id = data.aws_ssm_parameter.memory_id.value
}

---

Pattern 2: Monolithic Single-Agent

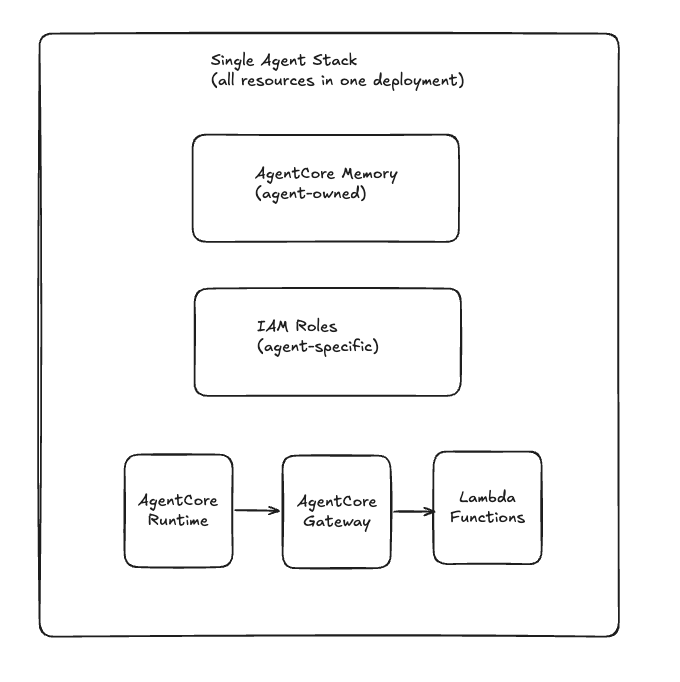

Architecture Diagram

┌───────────────────────────────────────┐
│  Single Agent Stack                   │
│  (All resources in one deployment)    │
│                                       │
│  ┌─────────────────────────────────┐  │
│  │ AgentCore Memory                │  │
│  │ (Agent-owned)                   │  │
│  └────────┬────────────────────────┘  │
│           │                           │
│  ┌────────▼────────────────────────┐  │
│  │ IAM Roles                       │  │
│  │ (Agent-specific)                │  │
│  └────────┬────────────────────────┘  │
│           │                           │
│  ┌────────▼────────────────────────┐  │
│  │ AgentCore Runtime               │  │
│  │ + Gateway                       │  │
│  │ + Lambda Functions              │  │
│  └─────────────────────────────────┘  │
└───────────────────────────────────────┘

Characteristics

Memory Model: Integrated - memory created with agent

Coordination: N/A - single agent

Deployment: Single Terraform stack

Benefits

✅ Simplest Pattern

• All resources in one place
• Single terraform apply
• Easy to understand

✅ Complete Isolation

• No dependencies on other stacks
• Full control over all resources

✅ Quick Prototyping

• Fast to set up
• Good for POCs and demos

Limitations

⚠️ No Resource Sharing

• Every agent creates its own memory, IAM, VPC config
• Higher cost at scale

⚠️ No Cross-Agent Context

• Each agent has isolated memory
• User context doesn't transfer

⚠️ Harder to Scale

• Adding agents = duplicating infrastructure
• No platform-level standards

When to Use

• ✅ Single-purpose agent
• ✅ POC or demo
• ✅ No plan to add more agents
• ✅ Simplicity over efficiency
• ❌ NOT for production multi-agent systems

Implementation

See the monolithic agent blueprint in your repository.

---

Pattern 3: Independent Multi-Agent (A2A)

Architecture Diagram

┌────────────────────────────────────────┐
│   Host/Orchestrator Agent              │
│   (AgentCore Runtime - Google ADK)     │
│   Memory: Own or None                  │
└───────────┬────────────────────────────┘
            │ A2A Protocol (JSON-RPC 2.0)
            │ HTTPS + OAuth 2.0 / SigV4
    ┌───────┼───────┬────────────┐
    ↓       ↓       ↓            ↓
┌─────────┐ ┌────────┐ ┌──────────┐
│Monitor  │ │WebSrch │ │Analytics │
│Agent    │ │Agent   │ │Agent     │
│(Strands)│ │(OpenAI)│ │(Custom)  │
│         │ │        │ │          │
│Own Mem  │ │Own Mem │ │Own Mem   │
│Own IAM  │ │Own IAM │ │Own IAM   │
│A2A Srvr │ │A2A Srvr│ │A2A Srvr  │
└─────────┘ └────────┘ └──────────┘

Characteristics

Memory Model: Independent per runtime

Coordination: Peer-to-peer or orchestrator via A2A protocol

Deployment: Separate CloudFormation/Terraform stack per agent

Communication:

• A2A protocol (JSON-RPC 2.0)
• Port 9000 (standard A2A port)
• Agent discovery via /.well-known/agent-card.json

Benefits

✅ Cross-Framework Support

• Mix Strands, OpenAI Agents, Google ADK, custom agents
• Each agent uses its optimal framework

✅ Strong Isolation

• Separate memory, IAM, security boundaries
• Perfect for different organizational teams

✅ Autonomous Agents

• Each agent has independent lifecycle
• Scale agents independently
• Deploy/update without affecting others

✅ Open Standard

• A2A protocol is Linux Foundation project
• Interoperable across platforms

✅ Organizational Boundaries

• Team A owns monitoring agent
• Team B owns search agent
• No shared infrastructure coordination needed

Limitations

⚠️ High Complexity

• OAuth 2.0 + Cognito setup
• Network configuration (VPC endpoints, security groups)
• IAM policies for cross-runtime invocation
• Agent discovery and resolver logic

⚠️ No Shared Context

• Each agent has own memory
• Must explicitly pass context via A2A messages

⚠️ Network Overhead

• HTTP invocation between runtimes
• Latency vs direct function calls

⚠️ Cost

• N memory instances
• N runtimes
• OAuth infrastructure (Cognito User Pools)

When to Use

• ✅ Agents in completely different domains (monitoring, search, analytics)
• ✅ Different teams own agents
• ✅ Need cross-framework (Strands + OpenAI + ADK)
• ✅ Strong isolation requirements
• ✅ Organizational boundaries
• ❌ NOT for simple same-domain agents (overkill)

Implementation

See AWS sample: A2A Multi-Agent Incident Response

CloudFormation per agent:

AgentMemory:
  Type: AWS::BedrockAgentCore::Memory

AgentRuntime:
  Type: AWS::BedrockAgentCore::Runtime
  Properties:
    MemoryId: !Ref AgentMemory
    ProtocolConfiguration:
      Protocol: A2A
      Port: 9000
      MountPath: /
    AuthenticationMode: AWS_IAM

---

Pattern 4: AgentCore Supervisor (Gateway/MCP)

Architecture Diagram

┌────────────────────────────────────────┐
│   Supervisor Agent                     │
│   (AgentCore Runtime - Strands)        │
│                                        │
│  ┌──────────────────────────────────┐ │
│  │   AgentCore Memory               │ │
│  │   (Centralized - supervisor owns)│ │
│  └──────────────────────────────────┘ │
└────────────┬───────────────────────────┘
             │
        ┌────▼────┐
        │ Gateway │ (MCP Protocol)
        │ (MCP)   │
        └────┬────┘
             │
    ┌────────┼────────┬────────┐
    ↓        ↓        ↓        ↓
┌────────┐ ┌────┐ ┌─────┐ ┌─────┐
│Monitor │ │Search│ │Analyt││More│
│Tool    │ │Tool  │ │Tool  │ │... │
└────────┘ └────┘ └─────┘ └─────┘
  (Specialist Agents as MCP Tools)

Characteristics

Memory Model: Centralized in supervisor

Coordination: Supervisor orchestrates via routing logic

Deployment: Single stack (supervisor + gateway + specialist tools)

Communication: AgentCore Gateway/MCP protocol

Benefits

✅ Centralized Context Management

• Supervisor owns memory tools
• Best context management across specialists
• No context duplication

✅ Rich Orchestration Logic

• Conditional routing in code
• Multi-step workflows
• Result aggregation/synthesis

✅ Flexible Framework Support

• Supervisor can be Strands, OpenAI, Google ADK
• Specialists exposed as MCP tools

✅ Single Entry Point

• User invokes supervisor only
• Supervisor delegates to specialists

Limitations

⚠️ Supervisor Complexity

• Must code routing logic
• Supervisor is single point of failure
• Requires sophisticated prompt engineering

⚠️ Specialists as Tools

• Specialists can't be autonomous
• Tied to supervisor's lifecycle

⚠️ Gateway Configuration

• Must expose specialists via MCP
• IAM and endpoint management

When to Use

• ✅ Complex orchestration (multi-step workflows)
• ✅ Need centralized memory/context
• ✅ Specialist agents are tools/plugins
• ✅ Want single user-facing endpoint
• ❌ NOT for autonomous peer agents

Implementation

See AWS samples:

• SRE-agent/sre_agent/supervisor.py
• Lab-05: agents-as-tools-using-mcp

Python supervisor example:

class SupervisorAgent:
    def __init__(self, memory_id, gateway_url):
        self.memory_tools = [
            create_memory_retrieval_tool(memory_id),
            create_memory_save_tool(memory_id)
        ]

        self.specialist_tools = [
            MCPTool(gateway_url, "monitoring_agent"),
            MCPTool(gateway_url, "search_agent")
        ]

        self.agent = Agent(
            tools=self.memory_tools + self.specialist_tools,
            system_prompt=self._get_supervisor_prompt()
        )

---

Pattern 5: Bedrock Agent Supervisor

Architecture Diagram

┌─────────────────────────────────────┐
│   Bedrock Agent (Supervisor)        │
│   - SUPERVISOR mode                 │
│   - AWS-managed routing             │
└───────────┬─────────────────────────┘
            │ AWS Internal Routing
    ┌───────┼───────┬────────┐
    ↓       ↓       ↓        ↓
┌────────┐ ┌────┐ ┌─────┐ ┌─────┐
│Data    │ │Srch│ │Anlyt│ │More │
│Analyst │ │Agnt│ │Agent│ │Collab│
└────────┘ └────┘ └─────┘ └─────┘
  (Collaborator Bedrock Agents)

Characteristics

Memory Model: Independent per agent

Coordination: AWS-managed supervisor routing

Deployment: Can be single or multiple Terraform stacks

Technology: AWS Bedrock Agents only (no AgentCore)

Benefits

✅ Zero Code Coordination

• Purely Terraform configuration
• AWS handles routing logic

✅ Two Modes

• SUPERVISOR: Synthesizes responses from multiple collaborators
• SUPERVISOR_ROUTER: Routes to single best collaborator

✅ Simple IAM

• Standard Bedrock Agent permissions
• No complex cross-runtime policies

✅ Built-in History Relay

• relay_conversation_history = "TO_COLLABORATOR"

Limitations

⚠️ Bedrock Agents Only

• Cannot use AgentCore agents as collaborators
• All agents must be Lambda-based Bedrock Agents

⚠️ No A2A Support

• Cannot invoke A2A agents

⚠️ Limited to 10 Collaborators

⚠️ No Test Alias Support

• Cannot use TSTALIASID for collaboration
• Must create proper agent aliases

When to Use

• ✅ All agents are Bedrock Agents
• ✅ Simple routing needs
• ✅ Want AWS-managed coordination
• ✅ Zero-code preference
• ❌ NOT for AgentCore agents

Implementation

See: blueprints/bedrock-agent-supervisor/

resource "aws_bedrockagent_agent" "supervisor" {
  agent_name = "supervisor"
  agent_collaboration = "SUPERVISOR"
}

resource "aws_bedrockagent_agent_collaborator" "analyst" {
  agent_id             = aws_bedrockagent_agent.supervisor.id
  agent_descriptor_arn = aws_bedrockagent_agent.analyst.alias_arn
  instruction = "Use for data analysis questions"
}

---

Pattern 6: Hybrid (Platform + Supervisor)

Architecture Diagram

┌──────────────────────────────────────────────────────────┐
│         agentcore-platform (Shared Layer)                │
│  Memory + IAM + VPC + SSM                                │
└────────────────┬─────────────────────────────────────────┘
                 │
                 ↓
┌────────────────────────────────────────┐
│   Supervisor Agent                     │
│   (Reads platform memory via SSM)      │
│   - Routing logic                      │
│   - Centralized orchestration          │
└────────────┬───────────────────────────┘
             │ Gateway/MCP
    ┌────────┼────────┬────────┐
    ↓        ↓        ↓        ↓
┌─────────┐ ┌────┐ ┌────┐ ┌────┐
│data     │ │rsch│ │reg │ │more│
│analyst  │ │agnt│ │agnt│ │... │
└─────────┘ └────┘ └────┘ └────┘
  (All read platform memory)

Characteristics

Memory Model: Shared platform memory + centralized supervisor access

Coordination: Supervisor orchestrates peer agents

Deployment: Platform + supervisor + agents

Benefits

✅ Best of Both Worlds

• Platform's shared infrastructure
• Supervisor's routing logic

✅ Cross-Agent Context

• All agents benefit from shared memory
• Supervisor has full context view

✅ Flexible Evolution

• Start with Pattern 1 (platform + peers)
• Add supervisor later when routing needed

✅ Cost-Efficient

• Still single memory instance
• Supervisor is just another agent on platform

Limitations

⚠️ Additional Complexity

• Must maintain supervisor logic
• More components to manage

⚠️ Supervisor Dependency

• If supervisor fails, no routing
• Single point of failure for orchestration

When to Use

• ✅ Started with Pattern 1, need routing now
• ✅ Want both shared context AND orchestration
• ✅ Agents can work independently OR via supervisor
• ✅ Future-proofing for complex workflows

Implementation

Step 1: Deploy platform (already done)

cd blueprints/agentcore-platform && make deploy

Step 2: Deploy peer agents (already done)

cd blueprints/agentcore-agent-v2 && make deploy

Step 3: Add supervisor agent

# New blueprint: agentcore-supervisor-agent
# Reads platform memory via SSM
# Exposes peer agents as MCP tools via gateway

---

Comparison Matrix

By Key Criteria

Pattern	Memory Cost	Deployment Complexity	Context Sharing	Isolation	Orchestration	Best Use Case
1. Platform-as-a-Service	Low (1 memory)	Medium (platform + agents)	✅ Excellent	Medium	None	Same-domain peers
2. Monolithic	Low (1 memory)	Low (single stack)	N/A	Complete	N/A	Simple single agent
3. A2A Protocol	High (N memories)	High (N stacks + OAuth)	❌ None	✅ Excellent	Peer or orchestrator	Cross-domain autonomous
4. AgentCore Supervisor	Low (centralized)	Medium (supervisor + gateway)	✅ Excellent	Low	✅ Code-based	Complex orchestration
5. Bedrock Supervisor	Medium (N memories)	Low (config-only)	❌ None	Medium	✅ AWS-managed	Simple Bedrock routing
6. Hybrid Platform+Super	Low (1 memory)	High (platform + super + agents)	✅ Excellent	Medium	✅ Code-based	Future-proof flexibility

By Decision Factors

Choose Pattern 1 (Platform-as-a-Service) if:

• ✅ Agents in same domain (healthcare, scientific, research)
• ✅ Want shared user context
• ✅ Cost-conscious
• ✅ Independent agent deployments
• ✅ No routing logic needed

Choose Pattern 2 (Monolithic) if:

• ✅ Single agent, simple use case
• ✅ POC or demo
• ✅ No scale plans

Choose Pattern 3 (A2A) if:

• ✅ Cross-domain agents (monitoring + search + analytics)
• ✅ Different teams/organizations
• ✅ Strong isolation required
• ✅ Cross-framework support needed

Choose Pattern 4 (AgentCore Supervisor) if:

• ✅ Complex orchestration logic
• ✅ Multi-step workflows
• ✅ Centralized context management
• ✅ Specialists are tools

Choose Pattern 5 (Bedrock Supervisor) if:

• ✅ All Bedrock Agents
• ✅ Simple routing only
• ✅ Zero-code preference

Choose Pattern 6 (Hybrid) if:

• ✅ Started with Pattern 1, need routing
• ✅ Want future flexibility
• ✅ Need both shared context + orchestration

---

Evolution Paths

Path 1: Start Simple, Scale Up

Monolithic (Pattern 2)
    ↓
Platform + Peers (Pattern 1)
    ↓
Platform + Supervisor (Pattern 6)

When to evolve:

• Monolithic → Platform: When adding 2nd agent
• Platform → Platform+Supervisor: When users need routing ("I don't know which agent to use")

Path 2: Independent to Coordinated

Multiple Monolithic Agents
    ↓
Platform + Peers (Pattern 1)
    ↓
AgentCore Supervisor (Pattern 4)

When to evolve:

• Multiple → Platform: Reduce cost, share context
• Platform → Supervisor: Add orchestration logic

Path 3: Cross-Domain Expansion

Platform + Peers (Pattern 1, same domain)
    ↓
Platform + Peers + A2A Agents (mixed)

When to evolve:

• When adding agents in different domain (e.g., IT monitoring)
• Keep same-domain agents on shared platform
• Deploy cross-domain agents with A2A pattern

Path 4: Bedrock to AgentCore

Bedrock Agent Supervisor (Pattern 5)
    ↓
AgentCore Supervisor (Pattern 4)

When to evolve:

• Need advanced features (streaming, custom memory, MCP)
• Want to use Strands/OpenAI SDKs

---

Decision Framework

Step 1: Agent Count

Single agent?
├─ YES → Pattern 2 (Monolithic)
└─ NO → Continue

Step 2: Domain Analysis

All agents in same domain (healthcare, scientific)?
├─ YES → Continue to Step 3
└─ NO (different domains) → Pattern 3 (A2A)

Step 3: Orchestration Needs

Need routing/orchestration logic?
├─ YES → Continue to Step 4
└─ NO → Pattern 1 (Platform-as-a-Service)

Step 4: Agent Technology

All Bedrock Agents (no AgentCore)?
├─ YES → Pattern 5 (Bedrock Supervisor)
└─ NO (using AgentCore) → Pattern 4 (AgentCore Supervisor) or Pattern 6 (Hybrid)

---

Migration Checklist

From Monolithic to Platform Pattern

• [ ] Deploy agentcore-platform
• [ ] Verify SSM parameters created
• [ ] Update agent Terraform to read SSM
• [ ] Remove memory/IAM creation from agent
• [ ] Deploy agent, verify it uses platform memory
• [ ] Test memory sharing with new agent

Adding Supervisor to Platform Pattern

• [ ] Design supervisor prompt and routing logic
• [ ] Create supervisor agent blueprint
• [ ] Configure gateway to expose peer agents as MCP tools
• [ ] Deploy supervisor
• [ ] Test routing logic
• [ ] Update user-facing endpoints to supervisor

From Independent to A2A

• [ ] Deploy Cognito User Pool for OAuth
• [ ] Enable A2A protocol on runtimes
• [ ] Configure IAM for cross-runtime invocation
• [ ] Implement A2A client in orchestrator
• [ ] Add agent discovery logic
• [ ] Deploy and test agent-to-agent communication

---

Best Practices by Pattern

Pattern 1 (Platform-as-a-Service)

DO:

• ✅ Use {actorId} in all namespaces
• ✅ Document namespace contracts
• ✅ Deploy platform to all environments (dev, test, prod)
• ✅ Version platform changes carefully (affects all agents)
• ✅ Monitor shared memory usage

DON'T:

• ❌ Hardcode namespaces without {actorId}
• ❌ Create agent-specific memory strategies in platform
• ❌ Deploy agents to different regions than platform
• ❌ Skip platform deployment in new environments

Pattern 3 (A2A Protocol)

DO:

• ✅ Use agent cards for discovery
• ✅ Implement proper error handling for network failures
• ✅ Use OAuth for production (not just SigV4)
• ✅ Version agent APIs
• ✅ Monitor cross-runtime latency

DON'T:

• ❌ Use A2A for same-domain agents (overkill)
• ❌ Skip agent discovery (hardcode endpoints)
• ❌ Ignore network security (VPC, security groups)

Pattern 4 (AgentCore Supervisor)

DO:

• ✅ Design clear routing prompts
• ✅ Implement fallback logic
• ✅ Log routing decisions
• ✅ Test supervisor with all specialist combinations

DON'T:

• ❌ Create overly complex routing logic
• ❌ Make specialists dependent on supervisor for memory
• ❌ Skip error handling when specialist fails

---

Cost Comparison (Approximate)

Assuming 1000 conversations/day, 10 messages each:

Pattern	Memory Cost	Runtime Cost	Gateway Cost	Total Est. Monthly
1. Platform-as-a-Service	$50 (1 memory)	$300 (3 runtimes)	$150 (3 gateways)	$500
2. Monolithic	$50 (1 memory)	$100 (1 runtime)	$50 (1 gateway)	$200
3. A2A Protocol	$150 (3 memories)	$300 (3 runtimes)	$150 + Cognito	$650
4. AgentCore Supervisor	$50 (centralized)	$200 (super + 2 specialists)	$150	$400
5. Bedrock Supervisor	$100 (3 memories)	N/A (Lambda-based)	N/A	$300 (Lambda)
6. Hybrid	$50 (1 memory)	$400 (super + 3 agents)	$200	$650

Cost leader: Pattern 2 (Monolithic) - but limited to single agent Best value for multi-agent: Pattern 1 (Platform-as-a-Service) Most expensive: Pattern 3 (A2A) - but provides maximum flexibility

---

Conclusion

Pattern 1 (Platform-as-a-Service) is optimal for many organizations that need:

• ✅ Multiple agents in same domain (healthcare/scientific)
• ✅ Cost-efficient shared infrastructure
• ✅ Cross-agent context sharing
• ✅ Independent agent deployments
• ✅ Simple to understand and maintain

Evolution paths to consider:

• Add more peer agents (research, regulatory) using the same pattern
• Consider Pattern 6 (Hybrid) if routing logic becomes needed
• Use Pattern 3 (A2A) only if expanding to different domains (e.g., IT monitoring)

Key principle: Start simple, evolve as needed. Don't over-architect for future requirements that may never materialize.

---

Official References

• AWS Bedrock AgentCore Documentation
• Amazon Bedrock AgentCore Samples (awslabs)
• Guidance for Multi-Agent Orchestration using Bedrock AgentCore (AWS Solutions Library)
• AWS Bedrock Multi-Agent Collaboration
• AWS Prescriptive Guidance - Multi-Agent Collaboration
• Strands Agents SDK
• MCP Protocol
• A2A Protocol (Google)
